Modular pressure measurement platform for human gait analysis.

PDF icon Download Datasheet

Not available for online purchase.
Contact us for pricing

Description

Human Gait Analysis Made Easy

Strideway is a versatile product that can be used for patients young and old.Strideway is a versatile product that can be used for patients young and old.

The Strideway™ is the first truly modular gait analysis platform in the industry. Strideway provides objective information on force and plantar pressure, plus temporal (time), spatial (distance), and kinetic (movement) parameters at the click of a button.

Strideway™ System Features:

  • Modular platform captures multiple footsteps in a single pass and allows you to choose the system sensing area and sensor resolution
  • Integrates with other gait lab technologies, such as EMG and motion capture systems
  • Automated calculation of an array of gait parameters: step and gait time, distance, velocity, and cadence
  • Automatically detects foot strikes with labels for left or right and number stances from first to last
  • Foot segmentation aids in calculating toe-in or toe-out angle, compared to the line of progression
  • Low profile platform reduces risk of tripping and minimizes gait changes and wider to accommodate walkers
  • Quick set-up and data collection process

Strideway: A Step Above the Rest!

Watch the video above to see how Strideway can put your practice, gait lab or research institution a step above the rest!

Applications

Strideway™ System Applications

  • Identify asymmetries or gait dysfunctions
  • Quantify foot function and gait patterns over several strides
  • Evaluate plantar pressure distribution for asymmetries and areas of high pressure
  • Monitor improvements post surgery or rehabilitation
  • Track patient progress with database and comparison reports
  • Determine the effectiveness of a proposed treatment
  • Assess high pressures and deviated Center of Force trajectories resulting from foot dysfunction and/or gait related disorders
  • Evaluate and determine treatments for pathomechanical and neuromuscular foot and gait affecting disorders
  • Investigate a treatment hypothesis for pathomechanical and neuromuscular foot and gait disorders
  • Screen for areas of potential ulcerations

Data shown here is from a patient with a walking assistive device (quad cane). The software auto identifies foot strikes and disregards the pressure from the cane.Data shown here is from a patient with a walking assistive device (quad cane). The software auto identifies foot strikes and disregards the pressure from the cane.

 Strideway is wide enough to accommodate walkers and canes.Strideway is wide enough to accommodate walkers and canes.

Clinical Gait Analysis with Strideway

See Margie King, PhD, perform a clinical gait analysis using the Strideway System.

For another example of clinical usage, download this case study to see how a clinician was able to validate a treatment plan for a patient with Cerebral Palsy.

Research Validated Solutions

Numerous articles have been published regarding computerized multi-step gait analysis and its applications. Tekscan has compiled a list of these research publications in our Medical Bibliography.

Configuration

Strideway™ System Components

Strideway™ is a modular gait analysis system available in lengths from 1-5 meters long. This system includes the embedded scanning electronics, software, and patented thin-film sensors. With simply two cords, one power cord and one USB cord per system, set up is streamlined and efficient.

The system comes with 2 end caps to help patients/subjects reach their comfortable gait prior to capturing the data, eliminating the need to discard steps or clean up the data in post data collection analysis.

Strideway is modular up to 5m. A 4 tile system is shown here.Strideway is modular up to 5m. A 4 tile system is shown here.

Top view of Strideway 4.Top view of Strideway 4.

* Components depend on system configuration. Additional items may be included with your system purchase.

Award Winning Technology

Strideway was selected as a winner in the 2018 R&D 100 Technology awards for the category Analytical/Test.  The R&D 100 Awards honor the latest and best innovations, identifying the top technology products of the past year. Since 1963, the R&D 100 Awards have identified revolutionary technologies introduced to the market. For more information visit their website.

Sensors

Strideway™ Pressure Sensor Configuration

  Standard Resolution
(Adults)		 Medium Resolution
(General Purpose)

High Resolution
(Pediatric)
System Model SRSW2 - SRSW8 MRSW2 - MRSW8 HRSW2 - HRSW8
Sensor Model 3160 3162 3164
Resolution 0.968 senselsTM/cm2
6.25 sensels/in2		 2.19 sensels/cm2
14.3 sensels/in2		 3.88 sensels/cm2
25.00 sensels/in2
# of Sensing
Elements		 4,096 9,120 16,256

Models

Model Active Sensing Area Overall Dimensions
with End Tiles
Strideway 2 0.65 x 1.3 m
2.1 x 4.3 ft		 0.91 x 2.60 m
3.0 x 8.5 ft
Strideway 3 0.65 x 1.95 m
2.1 x 6.4 ft		 0.91 x 3.25 m
3.0 x 10.7 ft
Strideway 4 0.65 x 2.60 m
2.1 x 8.5 ft		 0.91 x 3.90 m
3.0 x 12.8 ft
Strideway 5 0.65 x 3.25 m
2.1 x 10.7 ft		 0.91 x 4.55 m
3.0 x 14.9 ft
Strideway 6 0.65 x 3.90 m
2.1 x 12.8 ft		 0.91 x 5.20 m
3.0 x 17.1 ft
Strideway 7 0.65 x 4.55 m
2.1 x 14.9 ft		 0.91 x 5.85 m
3.0 x 19.2 ft
Strideway 8 0.65 x 5.20 m
2.1 x 17.1 ft		 0.91 x 6.50 m
3.0 x 21.3 ft

Strideway fits into a case for easy storage and transportation.Strideway fits into a case for easy storage and transportation.

Don't see the size you need? Contact us to discuss.

Software

Simplified Data for Gait Analysis

Actionable gait information is displayed in a variety of ways including graphs, pressure profiles, tables or charts to allow for rapid identification of asymmetries, abnormalities or treatment effectiveness.

Force vs. Time curves reveal the foot loading patterns of both the right and left feet.Force vs. Time curves reveal the foot loading patterns of both the right and left feet.

  • Accurate spatial, temporal, and kinetic parameters
  • Plantar pressure measurements and force data
  • Visible biofeedback for patient education & compliance
  • Isolate and analyze specific areas of plantar foot
  • Shows averaged pressure profile display for selected multiple foot strikes

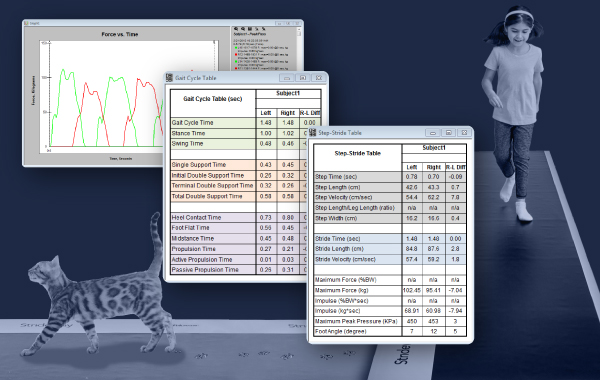

Automatic calculation of gait parameters & display in tables

Easily identify asymmetries between sides with R-L Difference provided in the gait tables.Easily identify asymmetries between sides with R-L Difference provided in the gait tables.

  • Gait Table: Shows key values for an entire gait cycle
  • Gait Cycle Table and Step-Stride Table: Provides individual data for each foot, and differences between the feet (right minus left)
  • Symmetry Table: Provides a symmetry score (or index) between left and right sides (in %)
  • Differential Table: Provides comparative of differences between left and right sides

Strideway™ Software Features

Segment the foot to analyze specific areas of the foot for detailed analysis.Segment the foot to analyze specific areas of the foot for detailed analysis.

  • Display 2D and 3D real-time and recorded data
  • Side-by-side comparisons of pre- and post-treatment conditions
  • Frame by frame, single, and multi-stance phase displays
  • Display pressure and force curves over time
  • Import and export client movie files
  • Display Center of Force and its trajectory

Strideway systems are compatible with 64-bit operating systems only.  All Tekscan software works with current Windows® based operating systems. To view the complete computer requirements click here.

The software is available in several language including Spanish, French, and German. View software languages available.

Add-ons

Add-Ons

Optional software add-ons can be purchased for an additional cost. A software development kit is also available that enables you to build your own applications.

Video Synchronization Software Module Add-On

Video Synchronization Software Module add-on

Combine your real-time pressure data with live video.More
