CONFORMat System

Objective pressure analysis for optimizing seating and positioning.

Not available for online purchase.
Contact us for pricing

Description

Seating Design & Testing

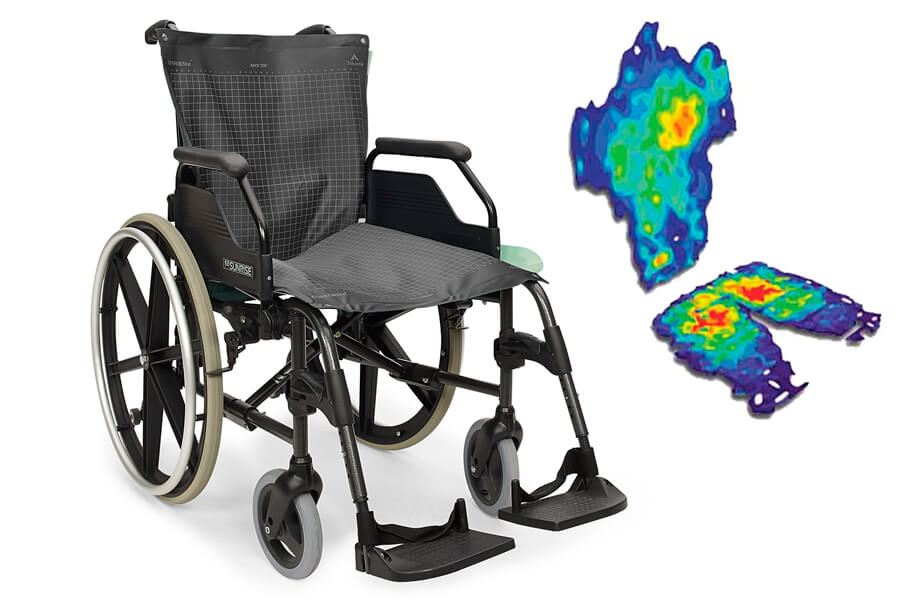

The CONFORMat™ system provides accurate, real-time information on pressure distribution and Center of Force (CoF) trajectory that helps providers develop optimal seating and positioning system for each individual patient. The unique, truly flexible design makes the CONFORMat the most advanced pressure mapping system available for seat and back analysis.

CONFORMat™ Seating and Positioning System:

CONFORMatCONFORMatPortable, lightweight sensor is easy to move between patients and facilities

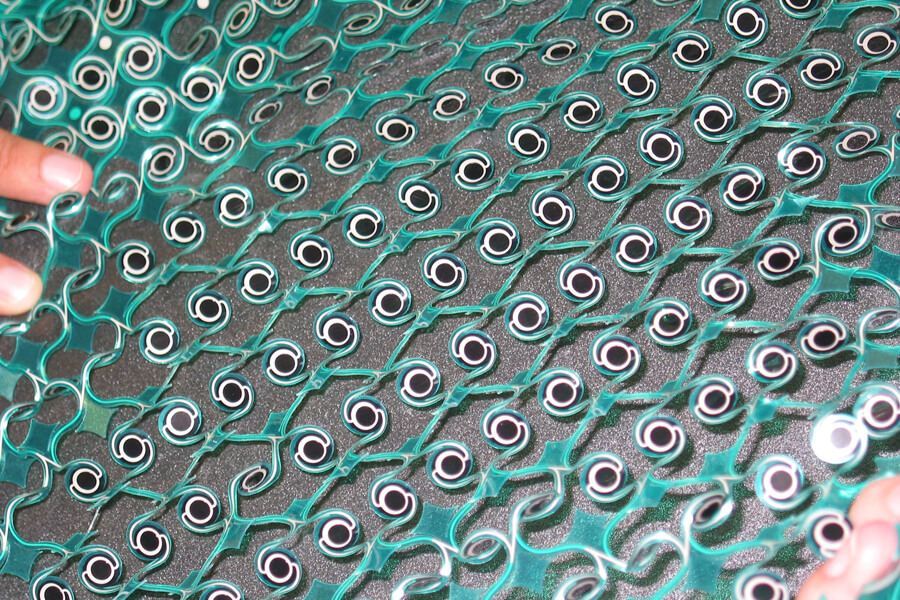

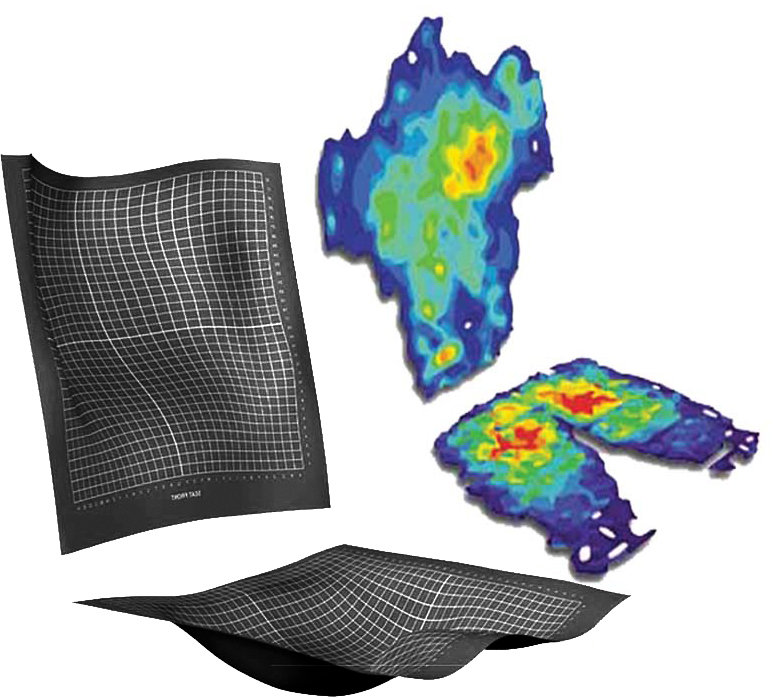

  • Specially designed CONFORMat sensor conforms to the shape of the patient and support surfaces to eliminate false pressure readings
  • 2,000+ individual sensing elements provide accurate, high-resolution readings

In a recent study1, the CONFORMat was found to have superior performance over other interface pressure mats on:

  • Pressure magnitude readings at areas of highest loading and at the most complex curvatures.
  • Buttocks immersion indicating least amount of hammocking.
  • Least overall influence between the buttocks and common seat cushions.

Benefits of Pressure Mapping:

  • Helps optimize cushion selection and custom seating development
  • Provides justification and documentation for treatment decisions
  • Engages patients with vivid color display and provides them with clear, visual feedback
  • Aids in identification of unseen asymmetries and pelvic obliquities
  • Provides accurate data for answering research hypotheses or development questions

1Pipkin & Sprigle (2008) Effect of Model Design, Cushion Construction, and Interface Pressure Mats on Interface Pressure and Immersion. JRRD, Vol. 45, No. 6, pp. 875–882.

Applications

CONFORMat™ Applications

  • Screen for high pressure areas that may be at increased risk for sores, ulcers, and wounds
  • Monitor progression and treatment of wound ulcerations
  • Validate wheelchair cushion selection and adjustments
  • Aid in identification of unseen asymmetries and pelvic obliquities
  • Pre- and post-surgical evaluations

Download the application flyer to learn more about our solutions!

Download Now

Numerous articles have been published regarding seating and positioning pressure mapping and its applications. Tekscan has compiled a list of these research publications in our Medical Bibliography.

Configuration

CONFORMat™ System Connection Options

A Tekscan system consists of scanning electronics, software, and patented thin-film sensors. The CONFORMat™ system is configurable based on your application requirements.

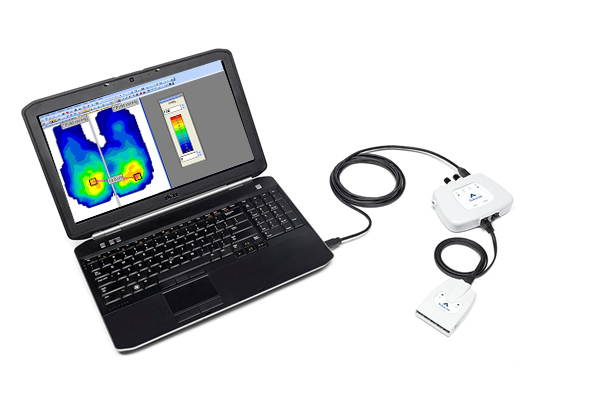

CONFORMat Tethered: Wires connect the sensor and scanning electronics on the subject to the computer via USB port.

Tethered

Scanning speed is 100 Hz with Evolution™ electronics.

Scanning speed is 100 Hz with VersaTek™ electronics.

*VersaTek sytems is shown.

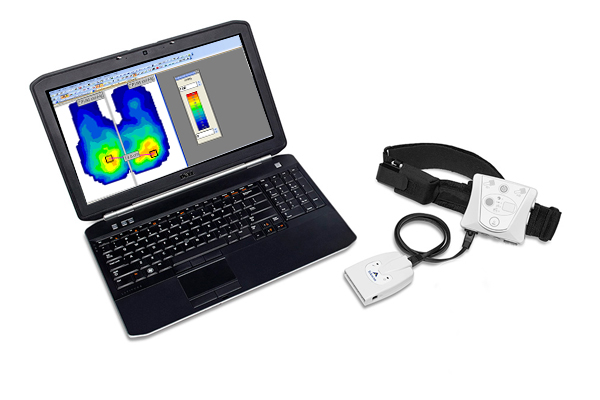

CONFORMat Wireless: Data is transmitted directly from the subject to the computer, allowing for a wide range of applications.

Wireless

Data can be recorded with the subject up to 100 meters away and displayed on the computer in real time. A 100 Hz scan rate is available.




CONFORMAT Datalogger: The datalogger function allows recordings to be stored on the unit and uploaded at a later date.

Datalogger

Ideal for use when a recording needs to be made over an extended period of time.

Scan rates of 100 Hz can be achieved with the datalogger connection.

* Components depend on system configuration. Additional items may be included with your system purchase.

What are VersaTek™ and Evolution™ electronics?

Evolution and VersaTek electronics connect to the sensor, gather the data from the sensor, and then process and send this data to your computer via USB connection. When you choose a system that uses VersaTek electronics, it is possible to share electronics for other Tekscan systems to reduce your costs.

  • Evolution electronics provide a maximum scanning speed of 100 Hz
  • VersaTek electronics provide a maximum scanning speed of 440 Hz

Sensors

CONFORMat™ Sensors

Software

CONFORMat™ Software Features

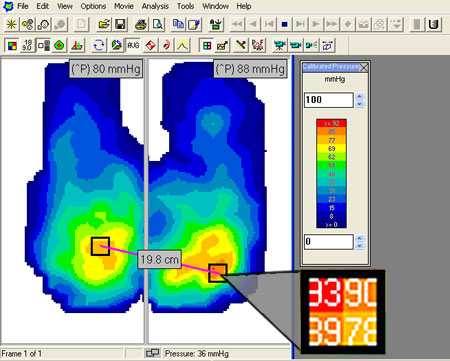

With CONFORMat software easily identify high pressure areas (in red) and view peak pressure (^P)With CONFORMat software easily identify high pressure areas (in red) and view peak pressure (^P)

  • Pressure on the individual Sensels™ can be assessed numerically (box inset), easing identification of high pressure areas
  • Display 2-D and 3-D real-time and recorded data
  • Display contact area, average and peak pressures, and Center of Pressure and its trajectory
  • View data frame by frame
  • Side-by-side comparisons of pre- and post-treatment conditions
  • Measure distance between two points (anatomical landmarks or sites)
  • Isolate and analyze specific regions
  • Import and export subject movie files

All Tekscan software works with current Windows® based operating systems. To view the complete computer requirements click here.

The software is available in several languages including Spanish, French and German. View software languages available.

Add-ons

CONFORMat™ Add-Ons
