Temperature Mapping Sensors
Tekscan's thin-film temperature mapping sensors can track real-time temperature data changes between almost any two mating surfaces.
Introducing the T800 Temperature Mapping Sensor from Tekscan.

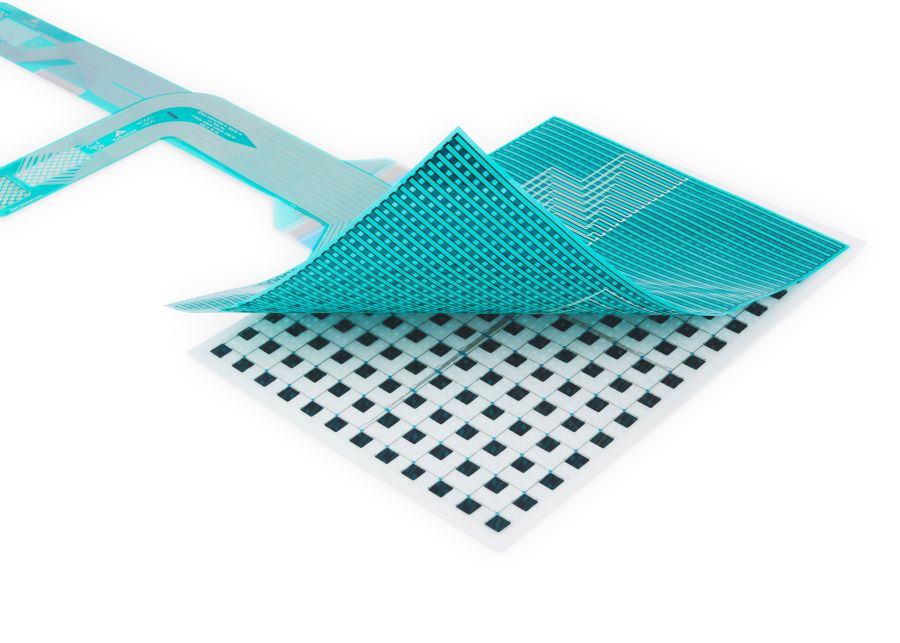

This thin, flexible, and trimmable sensor provides direct surface contact for accurate, high-resolution temperature mapping with 192 sensing points across a 0-120°C range. Unlike thermal cameras, it works in enclosed, obstructed, or reflective environments, making it ideal for complex applications.
- High resolution: 192 sensing points in a 16x12 array
- Overall Sensing Area:254 mm x 182 mm sensing area (trimmable)
- Temperature Resolution:Accurate to within ~2°C
- Technology: Thermoresistive polymer
- Interface: Compatible with Evolution Handle and I-Scan Software, minimum version 9.5.
The T800 has the same dimensions as our 7800 pressure mapping sensor, and both are trimmable, making them ideal companion sensors to get temperature and pressure data in the same fixture.
Temperature Sensor Specifications

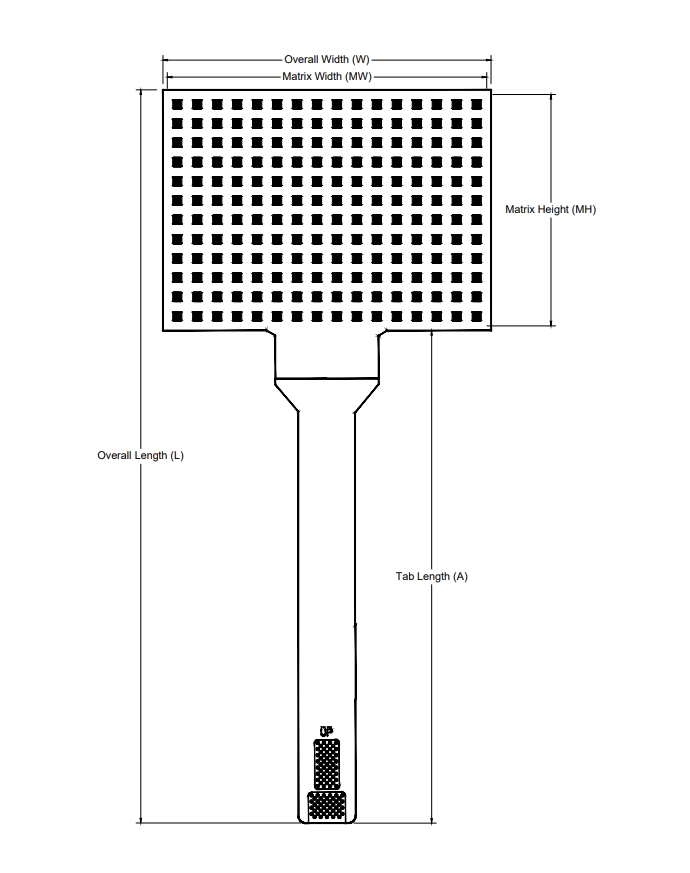

Sensor Dimensions
| Overall Length | Overall Width | Tab Length | Matrix Height | Matrix Width | Thickness |
|---|---|---|---|---|---|
| 603.5 mm / 23.76 in | 270.0 mm / 10.63 in | 405.4mm / 15.96 in | 190.5 mm / 7.5 in | 262.9 mm / 10.35 in | 0.18 mm |
| Rows | Columns | Resolution | Temperature Range |
|---|---|---|---|
Row Width7.62 mm / .300 in Row Spacing15.88 mm / .625 in Row Quantity12 |
Column Width7.62 mm / .300 in Column Spacing16.43 mm / .647 in Column Quantity16 |
Sensing points192 Sensor Spatial Resolution (Sensors per sq in/cm)2.5 sensels per sq-in / 0.4 sensels per sq-cm |
Temperature Range (Low)-0 °C Temperature Range (High)120 °C |
Use in Conjunction with the 7800 Pressure Mapping Sensor
The T800 temperature mapping sensor is designed to work in parallel with the 7800 pressure mapping sensor to collect and correlate pressure and temperature data simultaneously.
In the screenshot below, you can see how the I-Scan software uses the temperature map and pressure map connected to each sensor delivering real time data. he Temperature legend uses a unique color scale from the pressure map as you can see from the side-by-side windows.
 7800 Pressure Mapping Sensor on top of T800 Temperature Mapping Sensor |
 Temperature Mapping and Pressure Mapping Side by Side |
