Fuji Prescale Pressure Sensitive Film

Fujifilm Prescale Film

Fujifilm's Prescale Film is a single-use, pressure sensitive film that measures pressure ranging from 0.05 to 300 Mpa (about 7 to 43,500 psi) through peak pressure snapshots. It captures a pressure profile via a color scale and reveals pressure distribution.

Buy Online

$578.00

Description

Pressure Indicating Film

Fujifilm's Prescale™ pressure indicating film is used to measure contact pressures as low as 7.25 psi up to pressures as high as 43,500 psi. When pressure is applied, tiny microbubbles burst within the film to show the various degrees of pressure, through color density, that corresponds to the pressure and pressure distribution.

Features & Benefits of Prescale Film

  • Affordable and easy to use
  • One-time use
  • Static pressure measurement
  • Peak pressure snapshot

How Prescale Film Works

1. Cut Prescale Film to desired dimensions 2. Insert film and apply pressure 3. Remove Prescale and check density1. Cut Prescale Film to desired dimensions 2. Insert film and apply pressure 3. Remove Prescale and check density

Simply place Prescale film between any two surfaces which come into contact. Varying colors of red patches will instantly appear revealing the pressure distribution between the surfaces. The intensity of the red colors of the Prescale film is related to the amount of pressure applied to it; the more intense the color, the greater the pressure. There are seven different film types available ranging from 0.05 to 300 MPa (7.25 to 43,500 psi). For enhanced data analysis of Prescale film, a digital analysis system is also available.

Note: Please contact Tekscan for pricing on shipments over 5 rolls.  Prescale Film can be delivered only to the United States and Mexico at this time. For further information please contact us at 617-464-4282 or by email at info@tekscan.com and we will be happy to help you with your order.

What Could Dynamic, Real-Time Pressure Data Add To Your Process?

While pressure film can be effective in capturing static peak pressure loads, an I-Scan™ System offers several features and benefits to help you capture more robust, real-time data. Download this infographic and see how these pressure test & measurement technologies compare.

Configuration

There are two types of Prescale™ film: two-sheet and mono-sheet.

Two-sheet Prescale Film (Extreme Low pressure through Low pressure):

Composed of two polyester bases, A-Film and C-Film. A-Film is coated with a micro-encapsulated color-forming material, and a C-Film, which is coated with a color-developing material. The A-Film and C-Film must be positioned with the coated sides facing each other.

Two Sheet Film TypeTwo Sheet Film Type

Mono-sheet Prescale Film (Medium through Super High pressure):

The color-developing material is coated on a polyester base, with the micro-encapsulated color-forming material layered on top.

Mono Sheet Film typeMono Sheet Film type

Specifications

Prescale Film Physical Specifications

Pressure Ranges 0.05 to 300 MPa (7.25 - 43,500 psi)
Thinness

mono-sheet type(S): 100µm (0.004 in.)

two-sheet type(W):100µm x2

Accuracy ±10% or less based on density values
Temperature 20˜35°C (68˜95°F)
Humidity Range 35% - 80% RH
Item Description Psi Type Dimensions
4LW Extreme Low 7.25 - 29 Two Sheet 310mm x 3m

(12.2" x 118.1")

LLLW Ultra Super Low 28 - 85 Two Sheet 270mm x 5m

(10.6" x 196.9")

LLW Super Low 71 - 355 Two Sheet 270mm x 6m

(10.6" x 236.2")

LW Low 355 - 1,420 Two Sheet 270mm x 10m

(10.6" x 393.7")

MS Medium 1,420 - 7,110 Mono Sheet 270mm x 10m

(10.6" x 393.7")

HS High 7,110 - 18,500 Mono Sheet 270mm x 10m

10.6" x 393.7"

HHS Super High 18,500 - 43,500 Mono Sheet 270mm x 10m

(10.6" x 393.7")

Applications

Prescale Pressure Indicating Film Applications

Prescale is used in a variety of applications. The list below outlines some of the ways our customers are using Prescale. If your application involves dynamic events or calls for evaluation of pressures over time, refer to our Tactile Pressure Mapping Systems.

Industrial

  • Confirm uniform loading between mechanical parts
  • Test correct machine assembly
  • Identify pressure distribution between gear teeth
Prescale Flatness

Automotive

  • Determine contact pressures, wear patterns, and evenness in brakes, clutches, and gaskets
gasket pressure measurement

Paper Processing

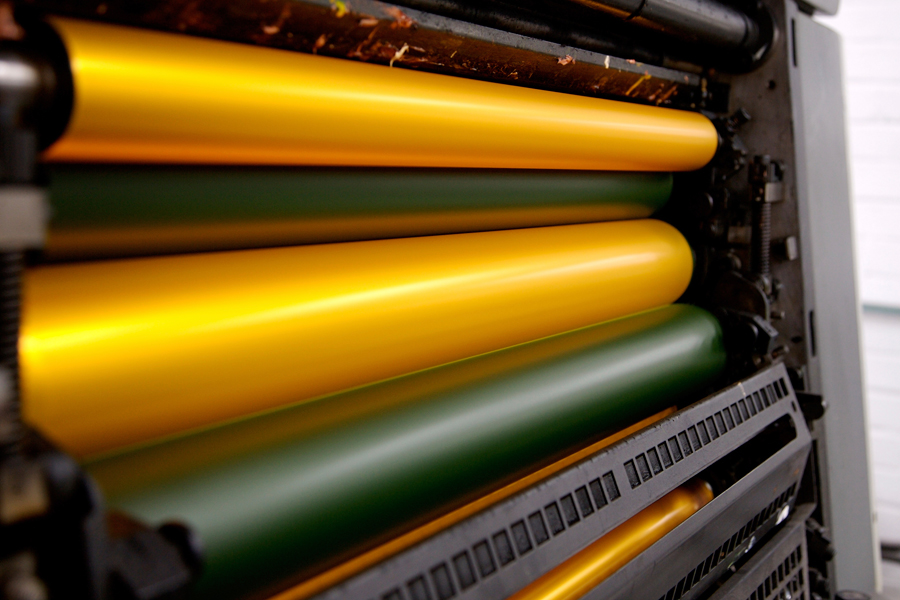

  • Determine pressure distribution between rollers
  • Identify the proper amount of crowning
paper processing roller pressure

Impact

  • Determine pressure distribution in package drop testing
  • Select suitable package material


Other

  • Identify excessive pressure in molds

  • LCD

Prescale pressure output
